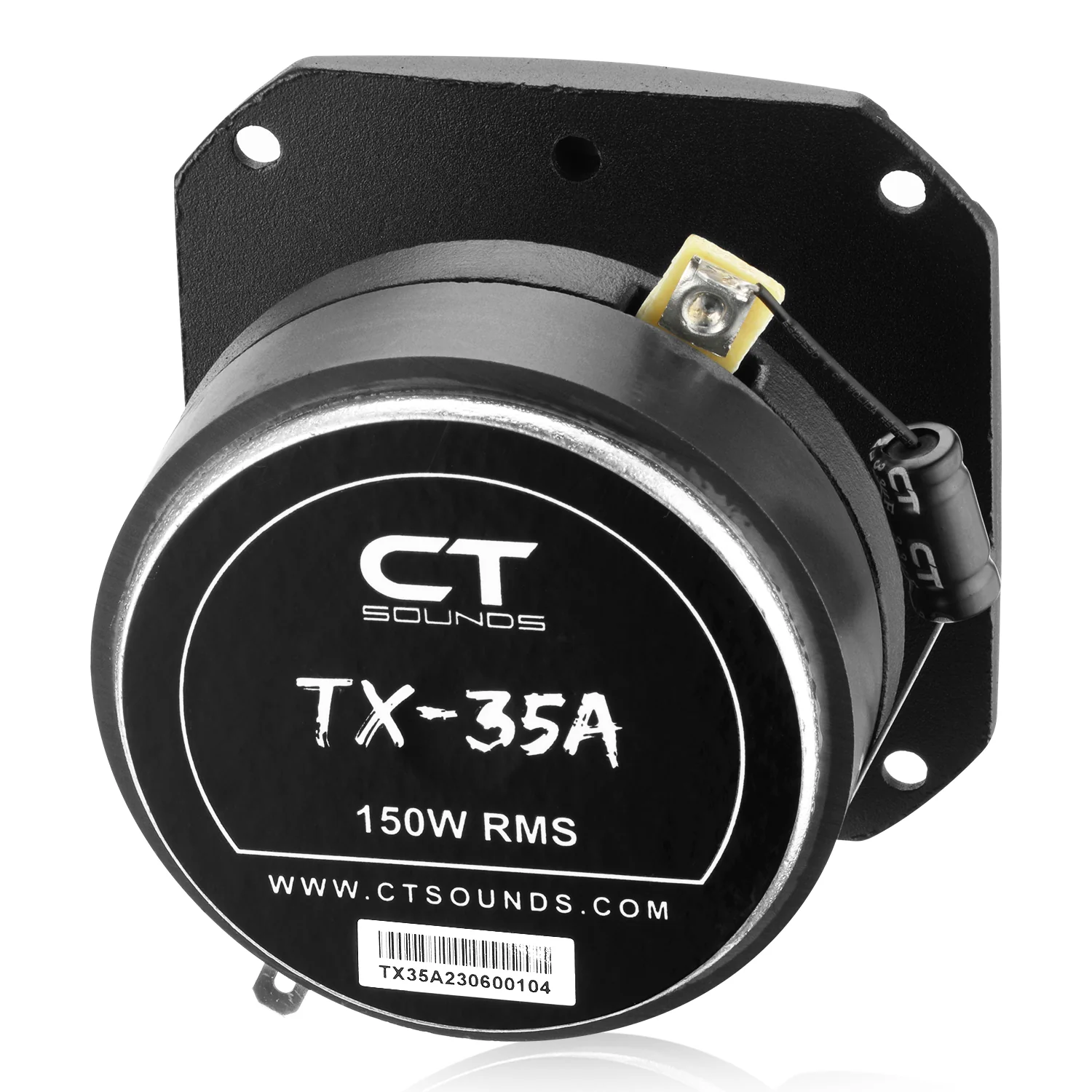

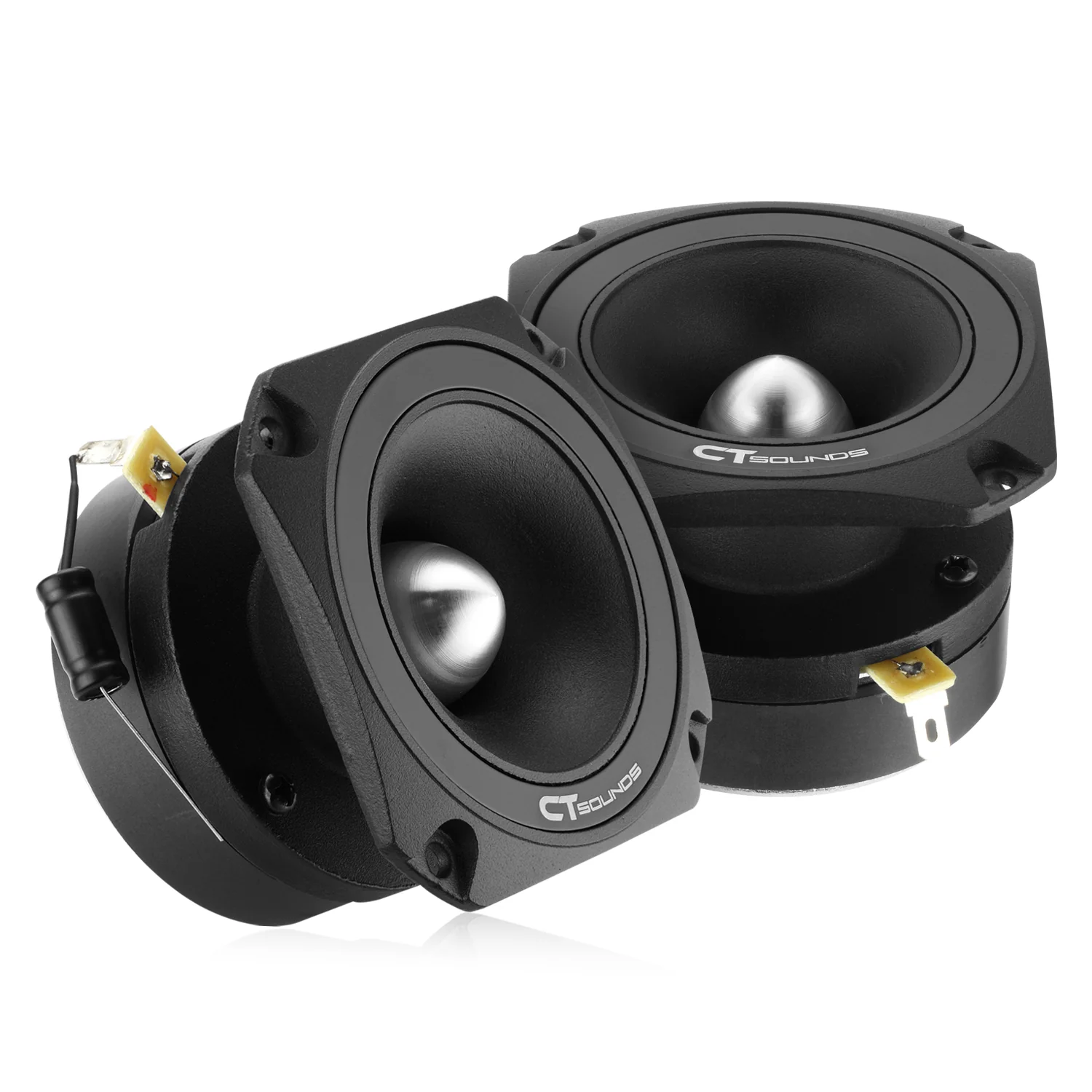

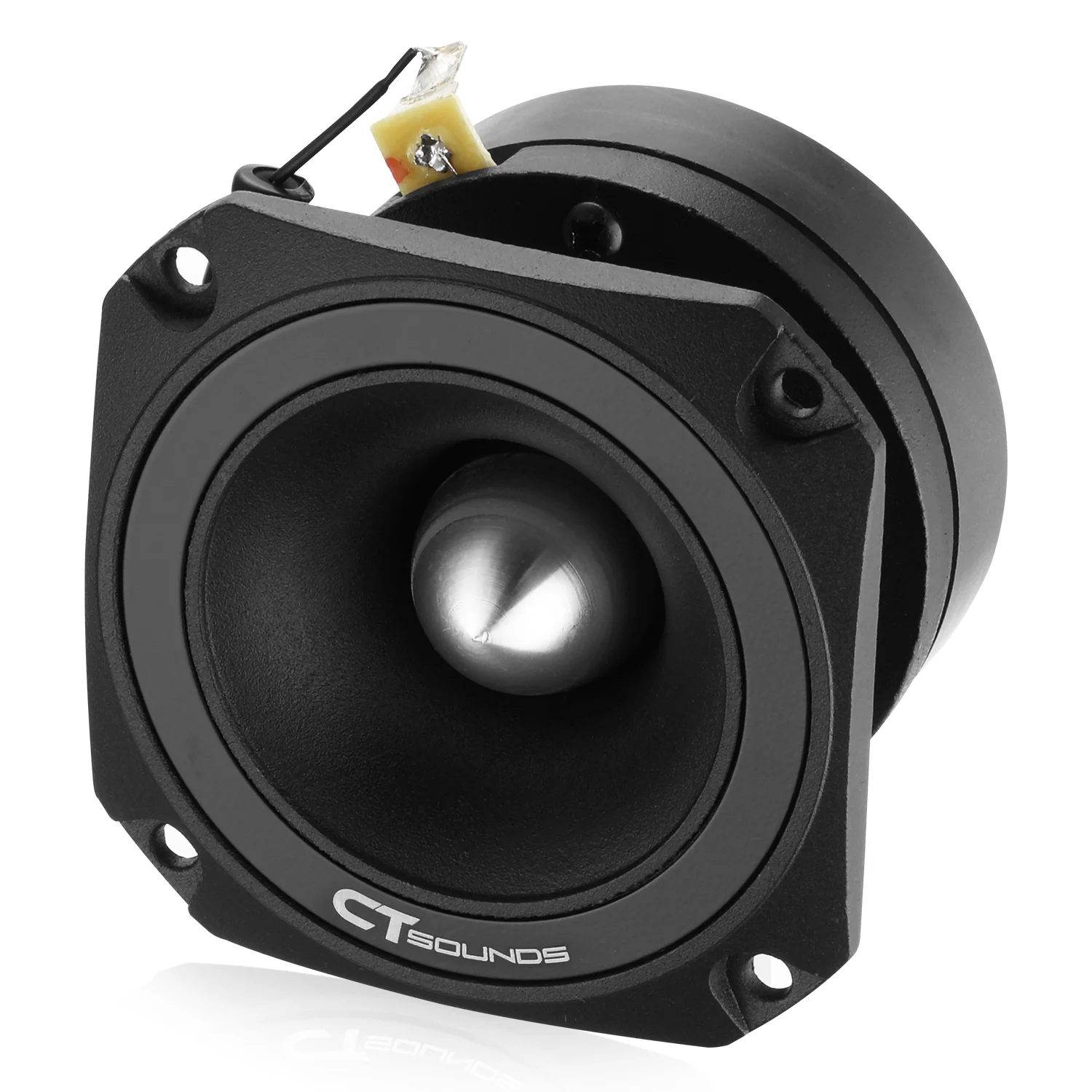

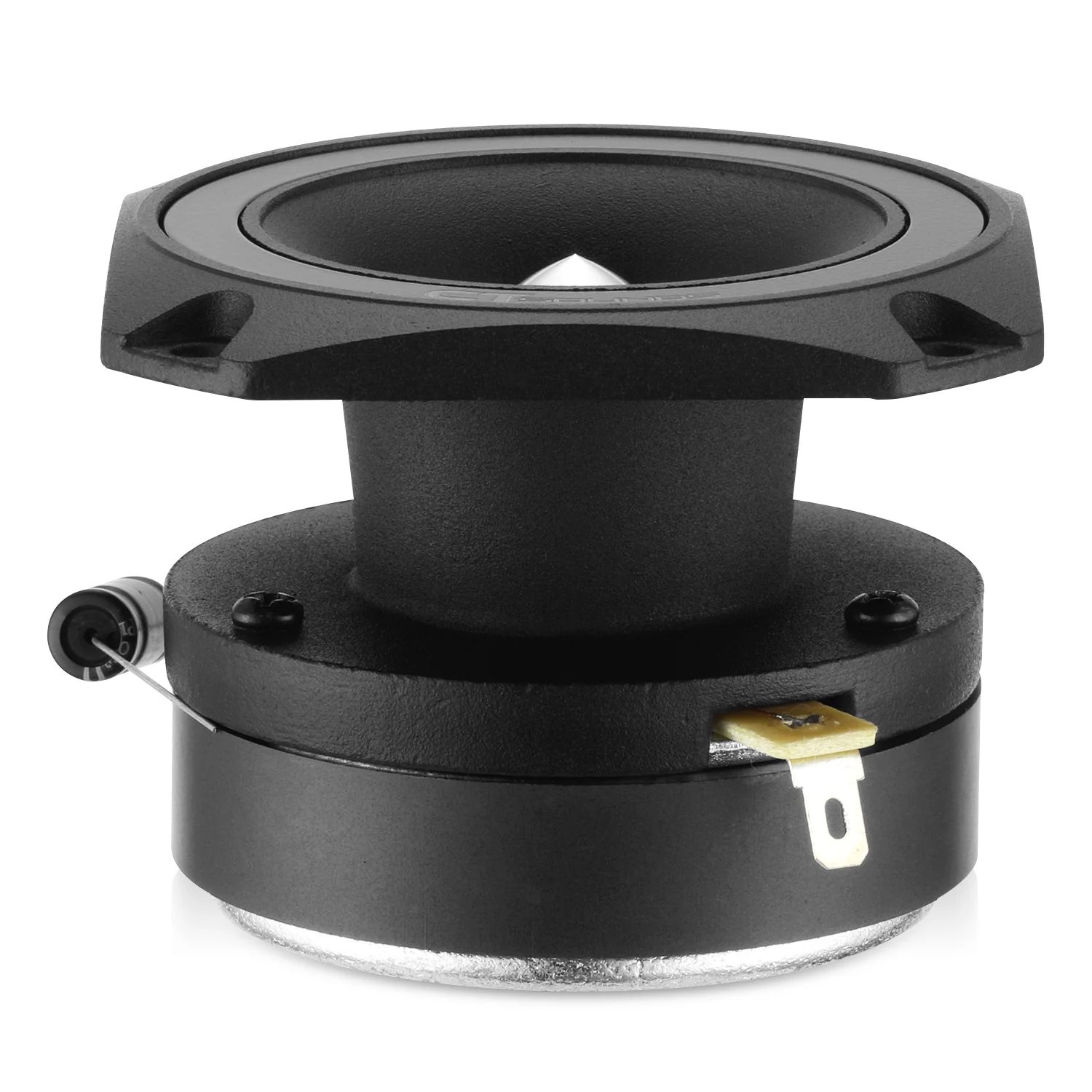

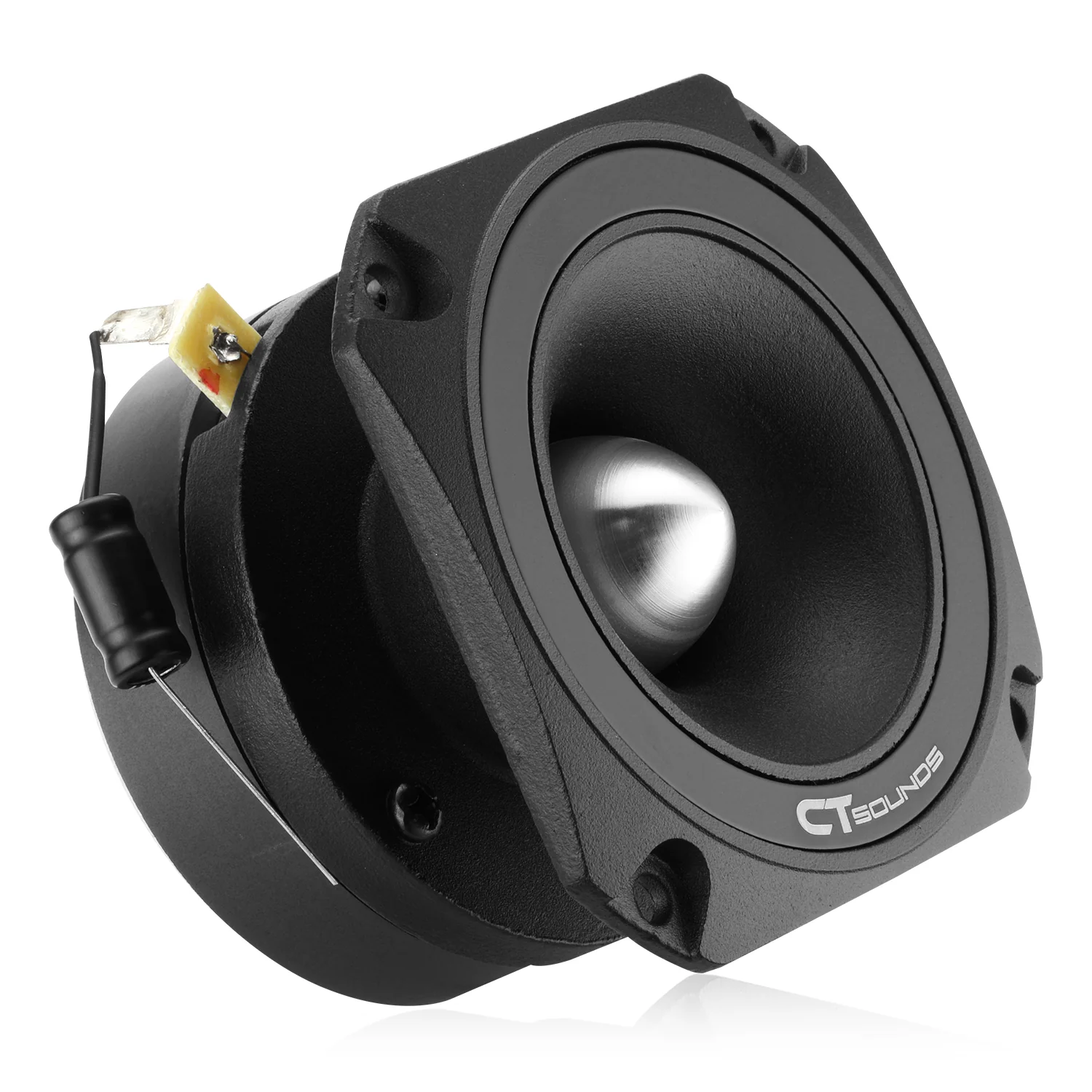

Introducing the CT Sounds TX-35A - the pinnacle of high-frequency audio reproduction. Crafted with precision and innovation, these super tweeters feature a professional-grade electrical system engineered for exceptional clarity and detail, thanks to the ferrite motor and round copper voice coil.

Quick Facts:
RMS Power:	300 Watts (Pair)
MAX Power:	600 Watts (Pair)
Impedance:	Single 4-Ohm
Recommended High Pass Crossover	3.75 kHz

Equipped with a titanium diaphragm and custom-engineered bullet phase plug, these super tweeters deliver robustness and longevity, ensuring consistent performance in demanding environments. Whether cruising down the highway or enjoying a ride in town, your sound will be heard from a long distance.

Installation is a breeze thanks to the built-in capacitors safeguarding your tweeters against low-end frequencies, preserving their sonic integrity. Additionally, we include our recommended mounting screws making installation even easier.

General Specifications:
Tweeter Size:	3.5"
Tweeter Type:	Super Tweeter
Sold As Pair:	Yes
Capacitor Included:	Yes
Terminal Type:	Spade Terminal
Impedance Per Tweeter:	Single 4-Ohm
Minimum Impedance Per Tweeter:	4-Ohm @ 3.5 kHz
Power Per Tweeter:	150W RMS | 300W MAX
Total System Power:	300W RMS | 600W MAX

Tweeter Specifications:
Voice Coil Size:	1"
Voice Coil Winding Material:	Copper
Voice Coil Former Material:	KSV
Diaphragm Material:	Titanium
Magnet Type:	Ferrite
Throat Diameter:	2.13"
Output SPL (@1w/1m):	105 dB
Frequency Response (@SPL -10dB):	2 kHz - 20 kHz
Sweep Voltage:	3V
Crossover Circuit:	3.3 μF capacitor / 100 V
Crossover Filter:	12 dB / octave
Recommended High Pass Crossover:	3.75 kHz

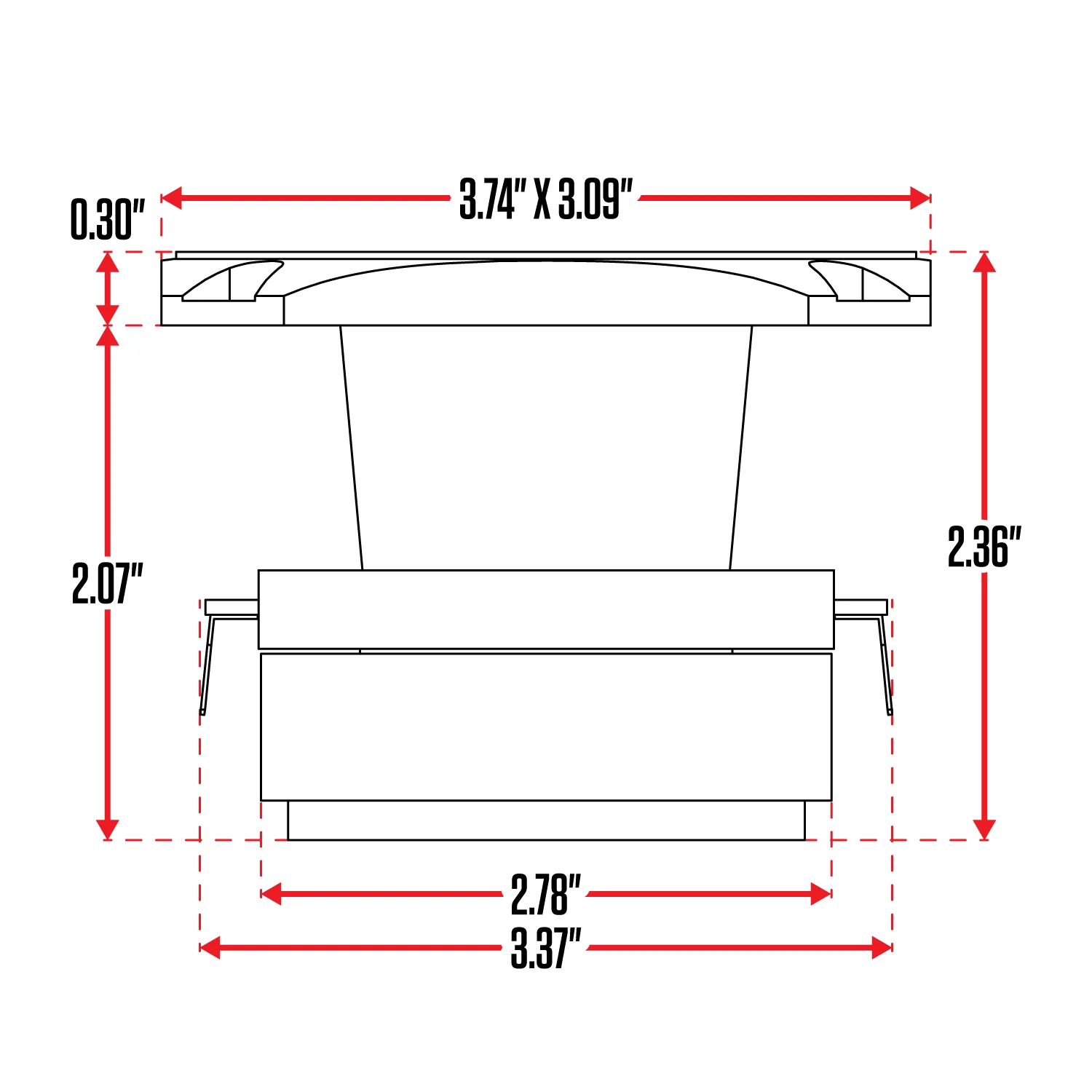

Mounting Info

Install Specifications:
Overall Diameter:	3.74" x 3.09"
Overall Height:	2.36"
Cut-out Diameter:	2.78"
Cut-out Diameter (incl. terminal slots):	3.37"
Throat Depth:	/
Mounting Depth:	2.07"
Flush Mount Lip Height:	0.30"
Flush Mount Lip Width:	3.09"
