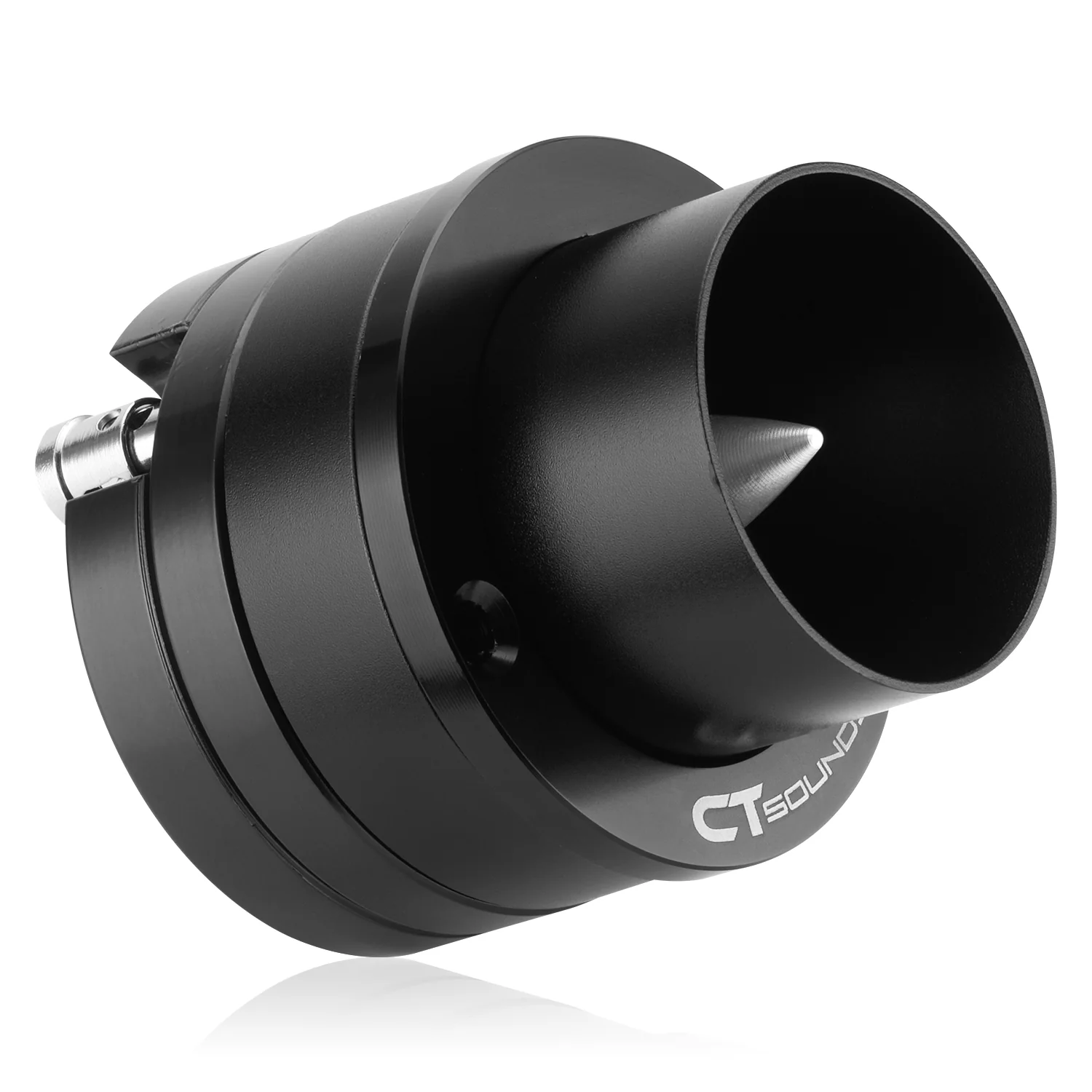

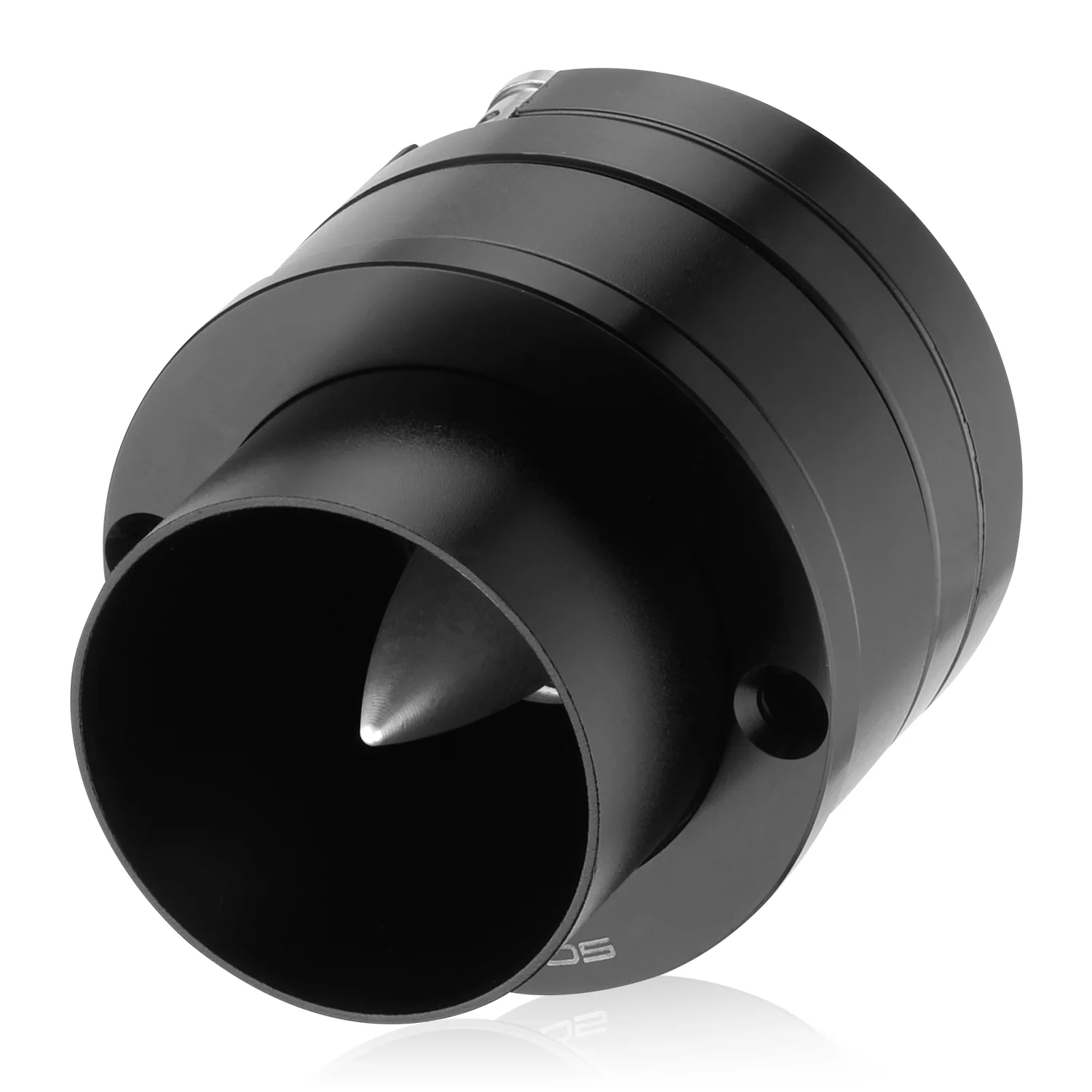

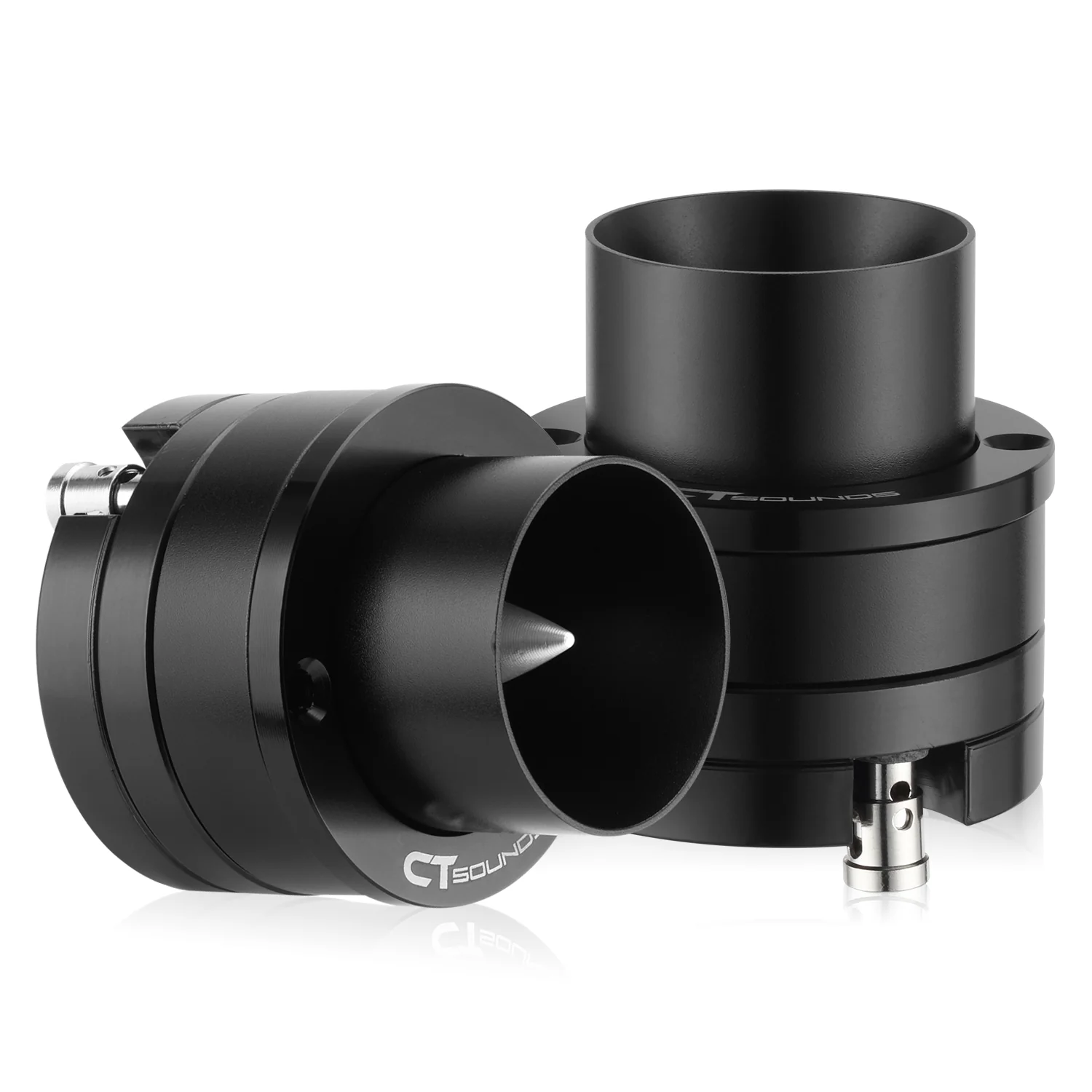

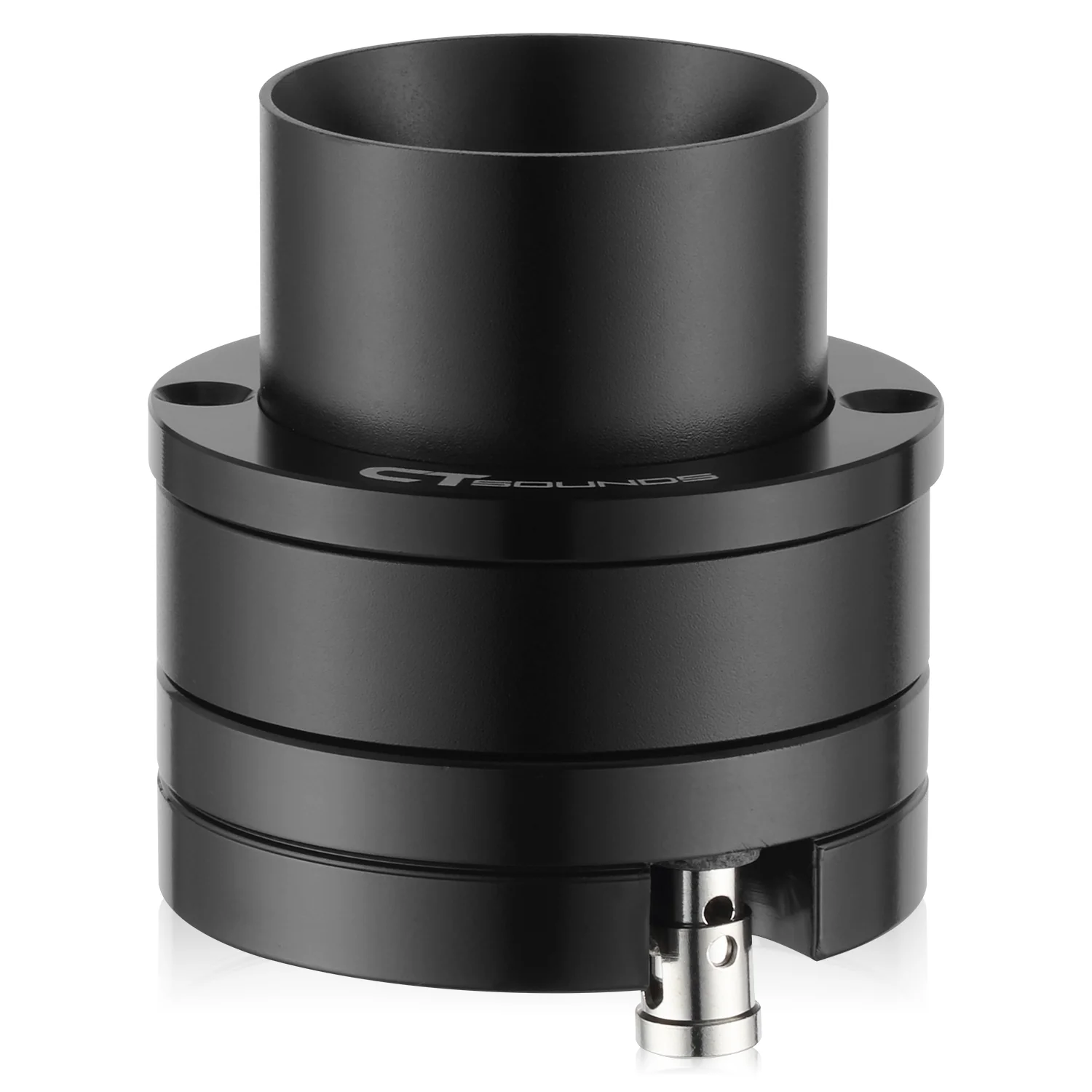

Introducing the CT Sounds TX-175B - the pinnacle of high-frequency audio reproduction. Crafted with precision and innovation, these super tweeters feature a lightweight electrical system engineered for exceptional clarity and detail, thanks to the neodymium motor and copper-clad aluminum voice coil.

Quick Facts:
RMS Power:	240 Watts (Pair)
MAX Power:	480 Watts (Pair)
Impedance:	Single 4-Ohm
Recommended High Pass Crossover	5 kHz

Equipped with a titanium diaphragm and custom-engineered bullet phase plug, these super tweeters deliver robustness and longevity, ensuring consistent performance in demanding environments. Whether cruising down the highway or enjoying a ride in town, your sound will be heard from a long distance.

Installation is a breeze thanks to the push terminals, and included wires with pre-installed capacitors safeguarding your tweeters against low-end frequencies, preserving their sonic integrity. Additionally, the black aluminum bracket gives you the benefit of adaptability in mounting dimensions.

General Specifications:
Tweeter Size:	1.75"
Tweeter Type:	Super Tweeter
Sold As Pair:	Yes
Capacitor Included:	Yes

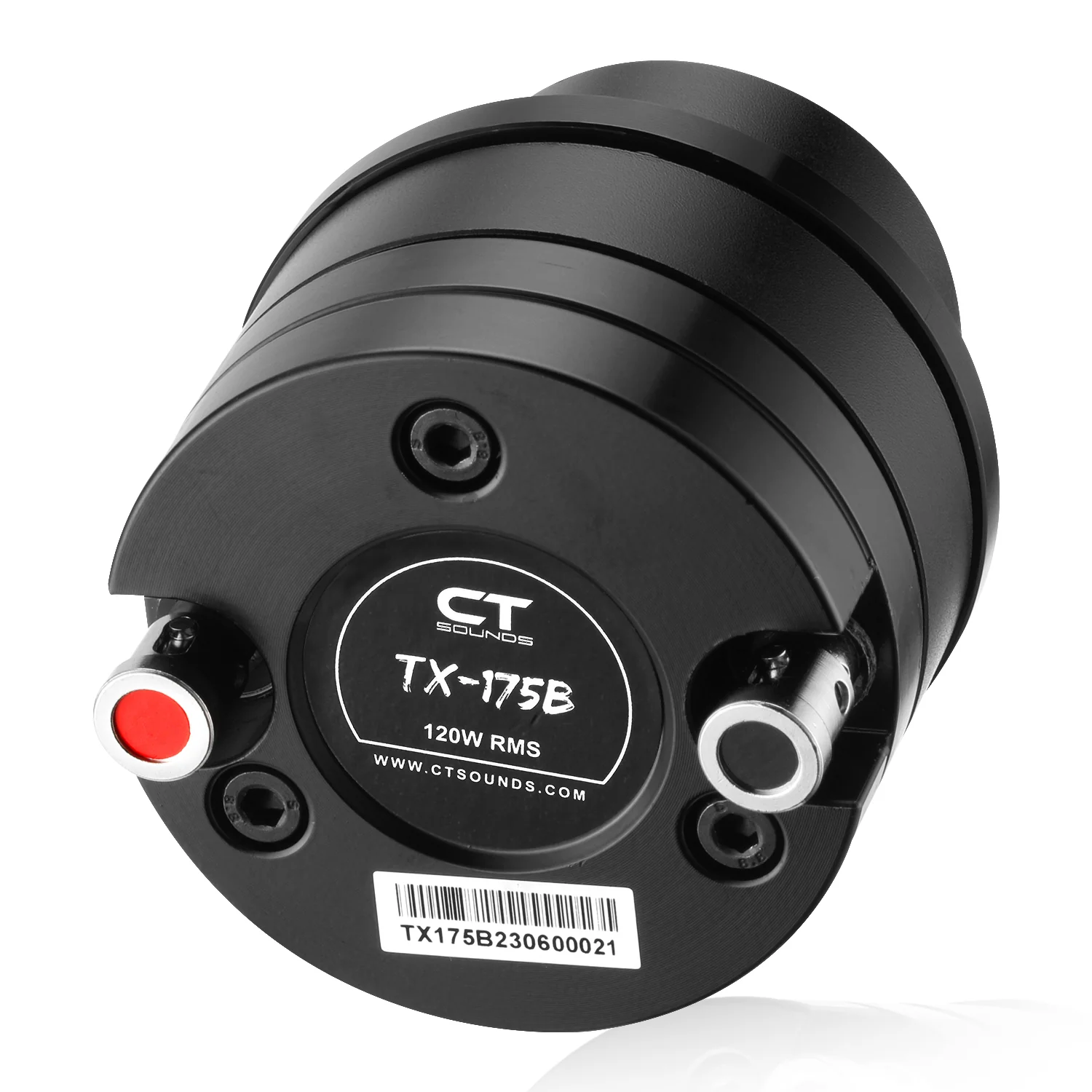

Terminal Type:	Push Terminal
Impedance Per Tweeter:	Single 4-Ohm
Minimum Impedance Per Tweeter:	4-Ohm @ 3.5 kHz
Power Per Tweeter:	120W RMS | 240W MAX
Total System Power:	240W RMS | 480W MAX

Tweeter Specifications:
Voice Coil Size:	1"
Voice Coil Winding Material:	CCAW
Voice Coil Former Material:	KSV
Diaphragm Material:	Titanium
Magnet Type:	Neodymium
Throat Diameter:	1.59"
Output SPL (@1w/1m):	105 dB
Frequency Response (@SPL -10dB):	3 kHz - 20 kHz
Sweep Voltage:	3V
Crossover Circuit:	3.3 μF capacitor / 100 V
Crossover Filter:	12 dB / octave
Recommended High Pass Crossover:	5 kHz

Mounting Info

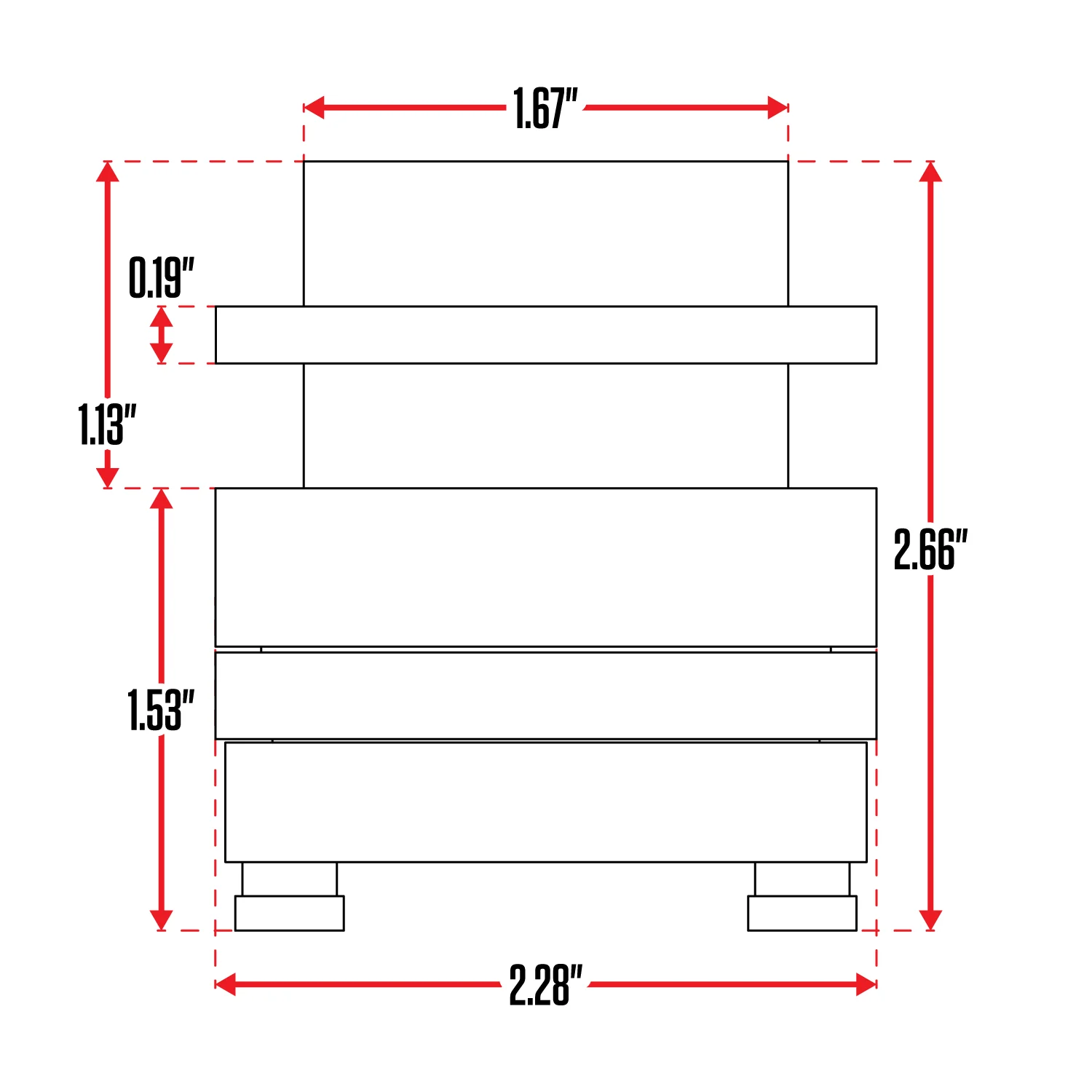

Install Specifications:
Overall Diameter:	2.28"
Overall Height:	2.66"
Cut-out Diameter:	1.67"
Cut-out Diameter (incl. terminal slots):	/
Throat Depth:	1.13"
Mounting Depth:	1.53"
Flush Mount Lip Height:	0.19"
Flush Mount Lip Width:	2.28"
